ART 715-A MK4 Active Two-Way Speaker
ART 715-A MK4 Active Two-Way Speaker
ART 715-A MK4 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and constant sound coverage. The 15” woofer offers an extremely linear response and a precise low frequency control. The transducers are produced using the most advanced assembly technologies. The two channel amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, phase control, soft limiting and transducers protection.
- 130 dB Max SPL
- Two Channel Amplifier of 1400 WATT
- Innovative DSP Processing
- 1" Compression Driver, 1.75" v.c.
- 15" Woofer
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
- Details
NEW PERSPECTIVE ON LINEARITY
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow the speaker to achieve coherent distribution of sound for all listeners without phase distortions whilst ensuring minimum latencies to the system.
Andrea Capra describes how RCF's FiR filtering technology improves the sound of their speakers.
SUPERIOR TRANSDUCERS
The woofers and compression drivers are precision built taking advantage of RCF’s technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.
POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
BRING ART WITH YOU
The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.
- Specifications
Acoustical specifications
- FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 130 dB
- HORIZONTAL COVERAGE ANGLE: 90°
- VERTICAL COVERAGE ANGLE: 60°
Transducers
- COMPRESSION DRIVER: 1.0'', 1.75'' v.c
- WOOFER: 15'', 2.5'' v.c

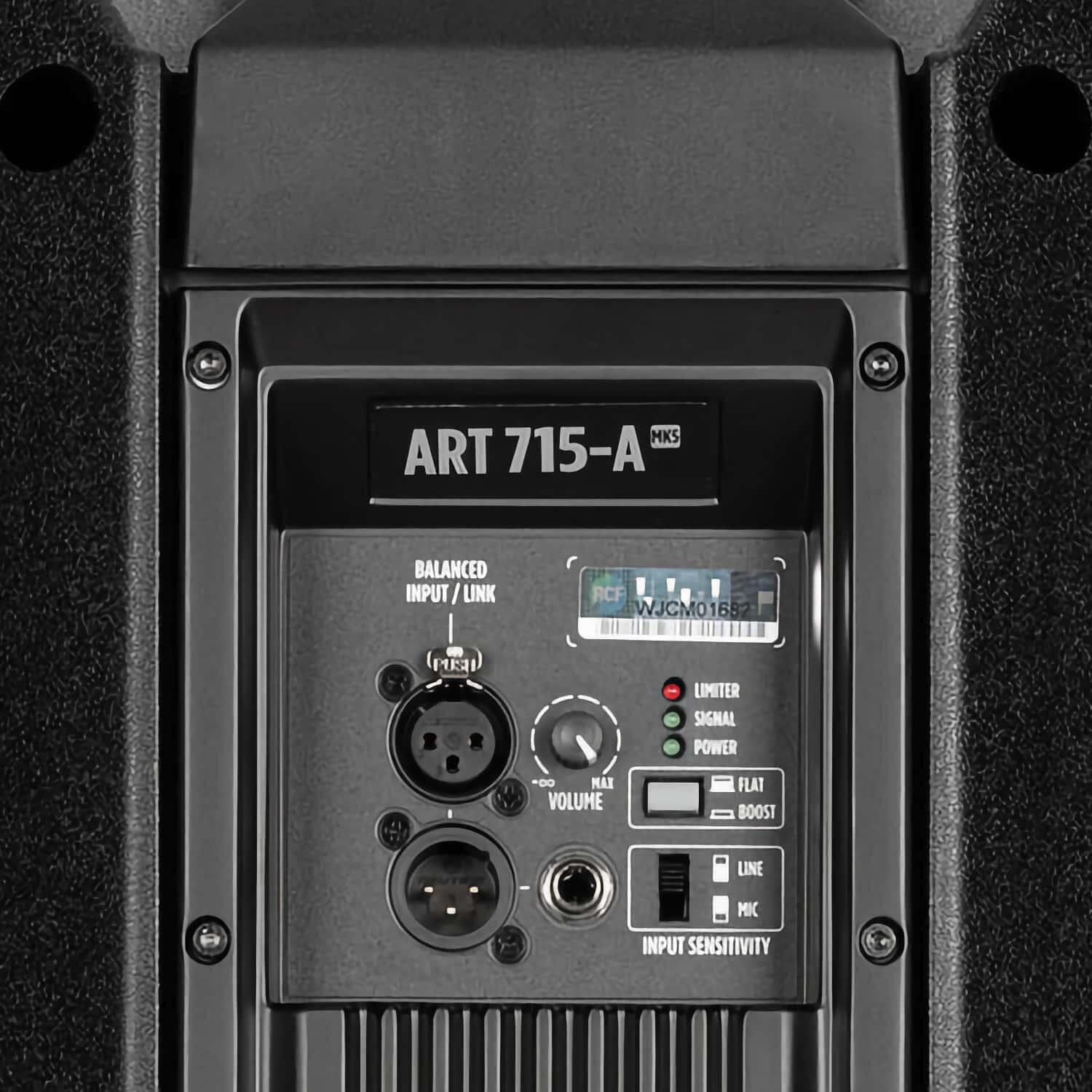

Input/Output section
- INPUT SIGNAL: bal/unbal
- INPUT CONNECTORS: XLR, Jack
- OUTPUT CONNECTORS: XLR
- INPUT SENSITIVITY: -2 dBu/+4 dBu
- MIC. INPUT SENSITIVITY: -32 dBu
Processor section
- CROSSOVER FREQUENCIES: 1600 Hz
- PROTECTIONS: Thermal, RMS
- LIMITER: Soft Limiter
- CONTROLS: Volume, Boost, Mic/Line
Power section
- TOTAL POWER: 1400 W Peak, 700 W RMS
- HIGH FREQUENCIES: 400 W Peak, 200 W RMS
- LOW FREQUENCIES: 1000 W Peak, 500 W RMS
- COOLING: Convection
- CONNECTIONS: VDE
Standard compliance
- CE MARKING: Yes
Physical specifications
- CABINET/CASE MATERIAL: PP Composite
- HARDWARE: 2 x M10
- HANDLES: 1 Top, 2 Side
- POLE MOUNT/CAP: Yes
- GRILLE: Steel
- COLOR: Black
Size
- HEIGHT: 708 mm / 27.87 inches
- WIDTH: 437 mm / 17.2 inches
- DEPTH: 389 mm / 15.31 inches
- WEIGHT: 19.6 kg / 43.21 lbs
Shipping information
- PACKAGE HEIGHT: 750 mm / 29.53 inches
- PACKAGE WIDTH: 500 mm / 19.69 inches
- PACKAGE DEPTH: 440 mm / 17.32 inches
- PACKAGE WEIGHT: 23 kg / 50.71 lbs
ART 715-A MK4 Active Two-Way Speaker Pair
