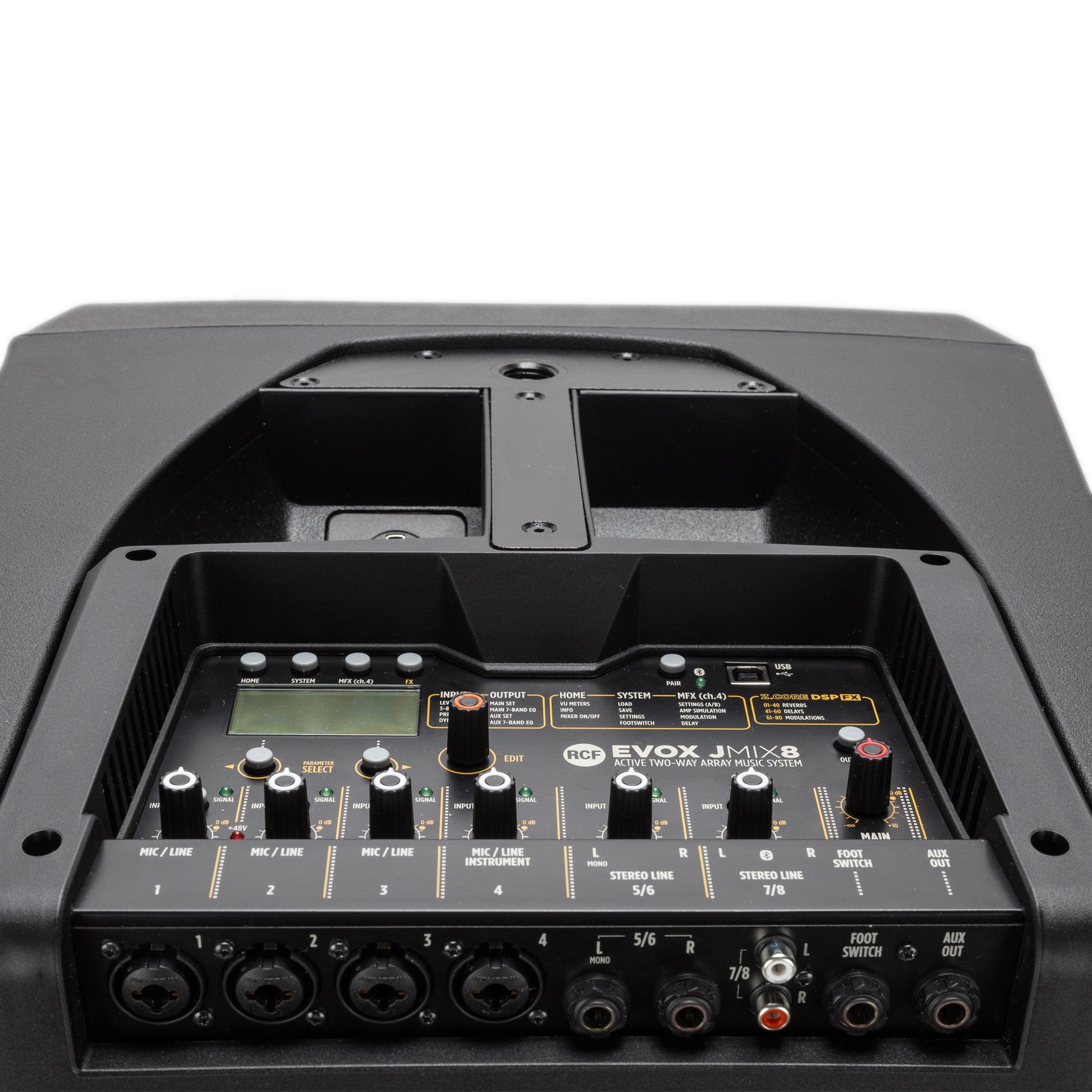

ONBOARD DIGITAL MIXER

All the available functions on the EVOX JMIX8 system integrated mixer can be managed from the operating panel. The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the parameter pages on the LCD display.

EVOX APP

The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.

POWERFUL CLASS D AMPLIFIER

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

SUPERIOR TRANSDUCERS

HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

LOW FREQUENCIES - The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30° (HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow the speaker to achieve coherent distribution of sound for all listeners without phase distortions whilst ensuring minimum latencies to the system.

Andrea Capra describes how RCF's FiR filtering technology improves the sound of their speakers.

JMIX IT!

The mixer section features a high quality professional preamplifier with remote digital gain control, selectable high pass filter, pan control and polarity reversal switch. Phantom power for condenser/electret microphones (+48V) available for channel 1 and 2. Each input channel is provided with a three band EQ: ±12dB gain shelving equaliser for lows and highs and a semiparametric EQ from 50Hz to 12kHz and ±12dB gain for the mid band. The EQ can be switched OFF with the touch of a button. Each channel can send audio to the FX chain and to the AUXiliary output for monitoring or other creative uses.

DYNAMIC COMPRESSOR

MIC/LINE inputs 1 to 4 are provided with a single control dynamic compressor. The control slider acts on the amount of compressor intervention. A dedicated button toggles the compressor ON and OFF. Up to 6 different presets can be selected from the Compressor Model list: Light, Heavy, Vocal, Bass, Acoustic, and Drum.

MAIN CHANNEL

A 7-band graphic EQ on the Main Channel lets you shape the frequency response of the system. In order to have a powerful overall sound, limiting peaks and more RCF EVOX J harmonics, four mastering processing presets can be selected: MASTERING, MASTER BOOST, LOUD & PROUD, and HI-FI.

GUITAR AMPS AND CABINETS INCLUDED

The line input 4 can be switched to a Hi-Z mode and host several realistic amp modeling simulators. Guitar and Bass players can count on a whole range of 15 realistic emulations tuned for the maximum reality: Darkface ’65, Jazz C, Rock’64, Rock 800 Crunch, Rock 900 Lead, Top30, Modern, Bassamp, Bassmate, Markbass 1, Markbass 2, Slo 88 Crunch, Slo 88 Lead, Overange 120, Heavy 51 and others. Shape the sound of each amp via 4 different parameters, store it in the Preset memory and recall via EVOX App, Panel, or Footswitch. A wide range of integrated sound options at your fingertips.

TONS OF EFFECTS

80 High Quality effects presets from the premium RCF Z.CORE.DSP, each with three parameter controls: 40 different reverbs, providing a realistic simulation of large spaces, such as halls, rooms or hardware reverbs; 20 different delay types; 20 modulation effects to shape any nuance of your music.

MFX

A whole range of easy-to-use effects helps the musician to find the right sound in any song: chorus, tremolo and flanger on the modulation effects unit, plus a useful delay for musical instruments.

EVOX APP

The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.

Acoustical specifications

• FREQUENCY RESPONSE: 40 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 128 dB
• HORIZONTAL COVERAGE ANGLE: 120°
• VERTICAL COVERAGE ANGLE: 30°

Transducers

• FULLRANGE: 8 x 2.0'', 1.0'' v.c
• WOOFER: 12'', 2.5'' v.c

Input/Output section

• INPUT SIGNAL: bal/unbal
• INPUT CONNECTORS: XLR, Jack
• OUTPUT CONNECTORS: XLR
• INPUT SENSITIVITY: -2 dBu/+4 dBu

Processor section

• CROSSOVER FREQUENCIES: 220 Hz
• PROTECTIONS: Thermal, RMS
• LIMITER: Soft Limiter
• CONTROLS: Volume, Boost, Mic/Line

Power section

• TOTAL POWER: 1400 W Peak, 700 W RMS
• HIGH FREQUENCIES: 400 W Peak, 200 W RMS
• LOW FREQUENCIES: 1000 W Peak, 500 W RMS
• COOLING: Convection
• CONNECTIONS: VDE

Electronic specifications

• FREQUENCY RESPONSE: 20 Hz ÷ 20 Hz
• THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): 0.004% A-Weighted

Processing

• A/D-D/A CONVERSION: 24 Bit @ 48.0 kHz
• DYNAMIC RANGE: 108
• PROCESSING CHANNELS: 8
• SIGNAL PROCESSING: 32 Bit Floating Point

Inputs

• A/D DYNAMIC RANGE (DB): 108 dB
• GAIN RANGE: 0 dB ÷ 45 dB
• GAIN SELECTION: 0 dB ÷ 45 dB
• STEREO LINE GAIN SELECTION: 0 dB ÷ 45 dB
• HI-Z LINE INPUTS IMPEDANCE (MOHM): 1 Mohm
• HI-Z LINE INPUTS: 1
• INPUT NOISE LEVEL (DBU A-WEIGHTED): -114 dBu A-Weighted
• MIC INPUTS IMPEDANCE (KOHM): 3 kohm
• LINE: 4
• LINE INPUT IMPEDANCE (KOHM): 11 kohm
• LOW CUT: 20 Hz ÷ 1000 dB
• MIC: 4
• PHANTOM POWER +48V: Yes
• REMOTE CONTROLLED STORABLE GAIN: Yes
• STEREO LINE: 2
• STEREO LINE INPUT IMPEDENCE (KOHM): 11 kohm

Outputs

• AUX OUTPUT: 1
• AUX SEND: 1

Outputs specifications

• AUX OUT IMPEDANCE (OHM): 150 ohm
• AUX OUT LEVEL (DBU): 19 dBu
• D/A DYNAMIC RANGE (DB): 108 dB
• MAIN OUT IMPEDANCE (OHM): 150 ohm
• MAIN OUT LEVEL (DBU): 19 dBu

Compressors

• RCF COMPRESSORS: 4 mono (6 preset)

EQ

• DESCRIPTION: 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency Graphic 7 Band EQ on Main Mix and AUX send.
• INPUT CHANNELS EQ: 1 Semi Parametric / 2 Shelving

Auxiliary sends

• AUX: 1 PRE/POST
• FX POST: 1

Internal Effects

• MULTIFX INSERT EFFECTS: 1
• SEND EFFECTS: 1

Mastering processors

• MAIN OUT PROCESSORS: 1

USB audio

• PLAY TRK: 2

Other features

• FOOTSWITCH: Yes

Electrical specifications

• POWER SUPPLY: Internal

Standard compliance

• CE MARKING: Yes

Physical specifications

• CABINET/CASE MATERIAL: PP Composite
• HANDLES: 1 Top
• GRILLE: Steel
• COLOR: Black

Size

• HEIGHT: 2285 mm / 89.96 inches
• WIDTH: 400 mm / 15.75 inches
• DEPTH: 460 mm / 18.11 inches
• WEIGHT: 22.2 kg / 48.94 lbs

Shipping information

• PACKAGE HEIGHT: 676 mm / 26.61 inches
• PACKAGE WIDTH: 451 mm / 17.76 inches
• PACKAGE DEPTH: 581 mm / 22.87 inches
• PACKAGE WEIGHT: 29.9 kg / 65.92 lbs
