GigBAR Bridge ILS Package
GigBAR Bridge ILS Package
Transform your lighting rig with the GigBAR Bridge ILS package – the ultimate all-in-one lighting solution.
This powerful system includes two heavy-duty lighting stands and a pair of GigBAR Bridge ILS fixtures, each equipped with 2 moving heads and 4 hex-colour wash LEDs for a total of 4 moving heads and 8 vibrant washes.
Setup is effortless thanks to the wireless ILS (Integrated Lighting System) technology, which automatically synchronises all fixtures for a perfectly coordinated light show – no programming or DMX knowledge required.

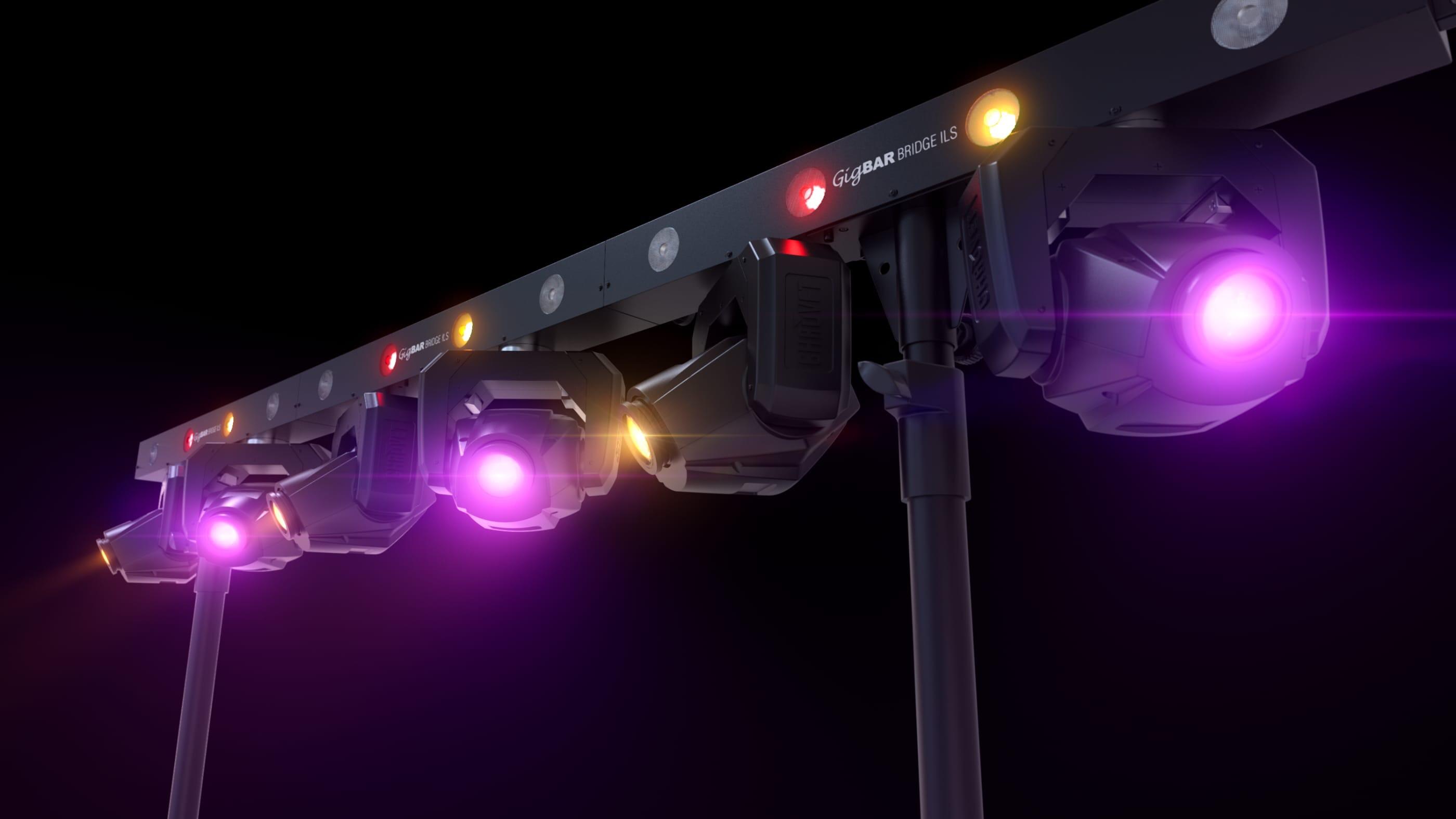

With adjustable stand heights ranging from 1.5m to 3.6m, the GigBAR Bridge ILS can be deployed in almost any venue, delivering a dynamic, professional-grade light show that’s as easy to set up as it is impressive to watch.
- GigBAR Bridge ILS
Transform your stage or venue with a sleek, all-in-one lighting system designed for mobile entertainers, DJs, and live performances. The GigBAR Bridge ILS delivers dynamic effects, wireless control, quick setup and effortless integration. Featuring two 40 Watt beam moving heads and four 10 Watt RGBAW + UV LED wash lights this GigBAR Bridge ILS packs a sophisticated light show into a single convenient fixture.
Transform your stage or venue with a sleek, all-in-one lighting system designed for mobile entertainers, DJs, and live performances. The GigBAR Bridge ILS delivers dynamic effects, wireless control, quick setup and effortless integration. Featuring two 40 Watt beam moving heads and four 10 Watt RGBAW + UV LED wash lights this GigBAR Bridge ILS packs a sophisticated light show into a single convenient fixture.
- 2-in-1 design: Combines dual 40 W cool-white moving heads with four hex-colour (RGBAW+UV) wash LEDs, all pre-mounted on one compact crossbar.
- Wireless freedom: Built-in D-Fi transceiver enables seamless DMX or ILS control, extending range up to 180 m (600 ft).
- Integrated Lighting System (ILS): Sync multiple fixtures effortlessly—ILS enables coordinated shows across your entire lighting ecosystem.
- Totem Mode: Fixes moving heads downward for immersive dance-floor coverage.
- Power Linkable: Run up to 8 units on 120 VAC or 13 units on 230 VAC using a single power source—no need for extension cords.
- Full DMX Control: Choose from 3, 16 or 46-channel DMX personality; includes display + menu buttons, RF & footswitch binding.

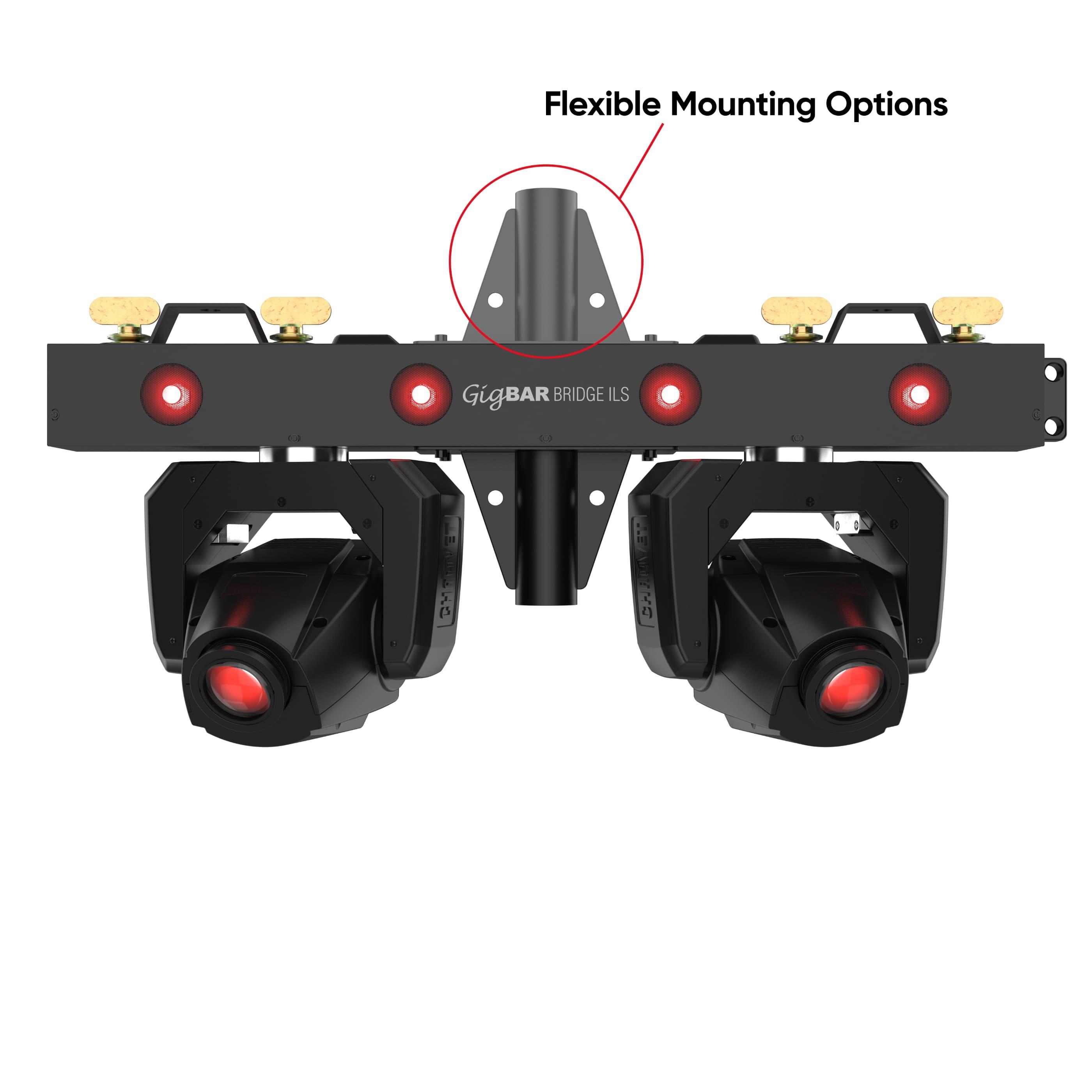

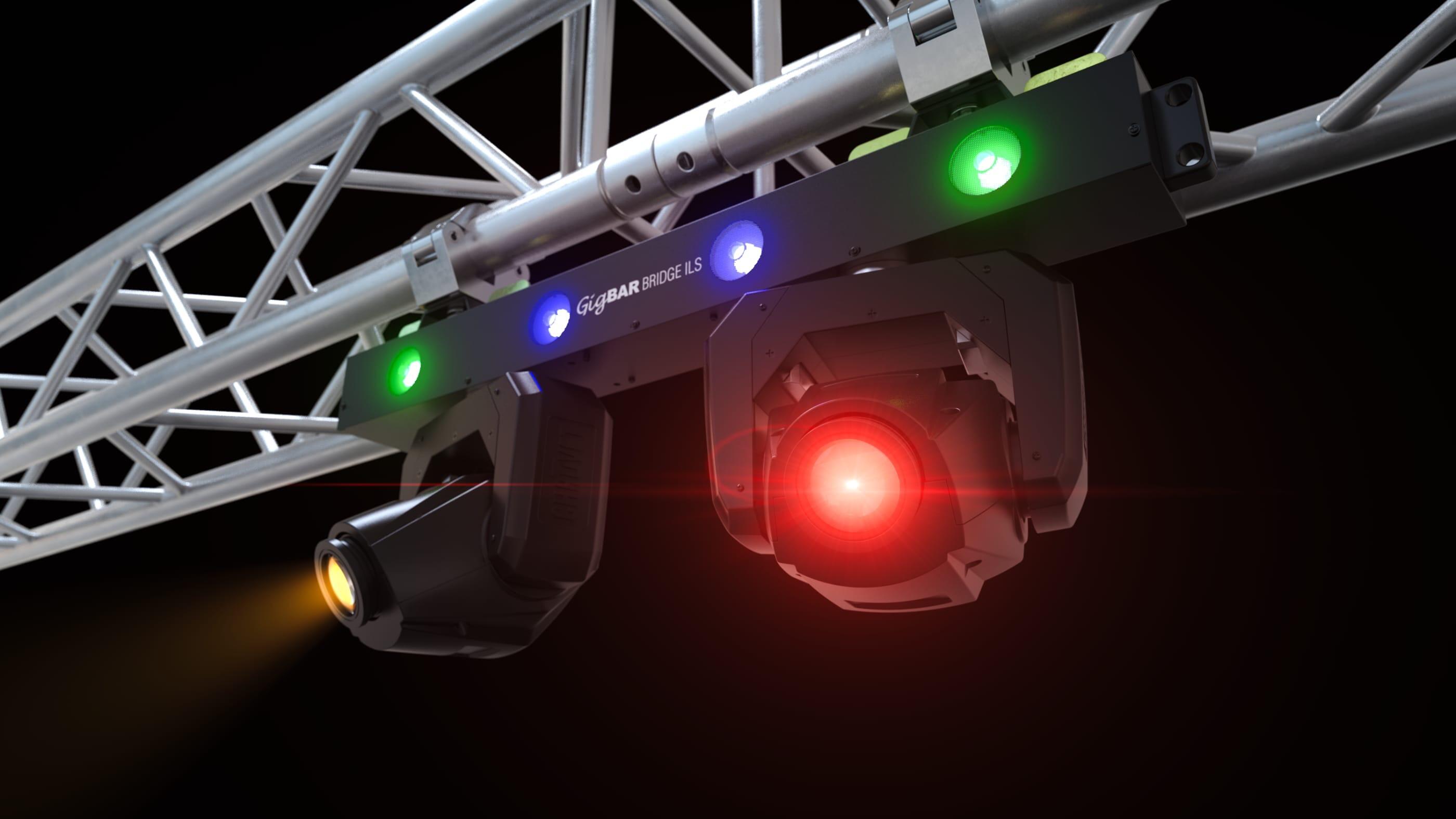

- Robust build & setup: Auto-ranging power supply (100–240 VAC), compact size (660 × 71 × 305 mm), weighs just 8.4 kg—easy to mount on truss or tripod.
- Included items: Comes supplied with 2 hanging brackets and a transportation bag.
- Specifications
- DMX Channels: 3, 16 or 46DMX
- Connectors: 3-pin XLR
- Strobe Rate: 0 to 20Hz
- Operating Frequency: 2.4 GHZ
- Power Linking: 8 units @ 120 V; 13 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Weight: 18.6 lbs (8.4 kg)
- Size: 26 x 2.8 x 12 in (660 x 71 x 305 mm)
- Approvals: CE, RoHS , FCC
- Colours (moving head): 9 + open, split colours, continuous scroll at variable speeds
- Gobos (moving head): 9 + open, continuous scroll at variable speeds
- Light Source (moving head): 1 LED (cool white) 40W (3A), 50,000 hours life expectancy.
- Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
- Beam Angle (wash): 22°
- Field Angle (wash): 38°
- Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz
- Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
- Fits Tripod Sizes: 1.5 in (37.4 mm)
- Max Unobstructed Distance (D-Fi): 600 ft (183 m)
- Optional Controllers: RF, Footswitch, ILS Command
- Illuminance (moving head): 6,594 Lux @ 2 m (per head)
- Illuminance (wash): 375 lux @ 2 m (per section)
