D300 Class-D Amplifier 2 x 150Wrms
The D300 is a stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different configurations to handle even the most demanding of sound reinforcement duties.
- Features
- Compact and lightweight 1U rack format
- Cool and efficient operation even at high output
- Switchable parallel and bridge modes
- Specifications
Bridge power @ 8 Ohms: 1 x 300W
Power rms @ 8 Ohms: 2 x 75W
Power rms @ 4 Ohms: 2 x 150W
Power supply: 220-240Vac, 50/60Hz (IEC)
Modes: Stereo, Parallel (mono), Bridge (mono)
Input sensitivity: 0.775V - 1.0V - 1.44V switchable
Low-cut filter: 75Hz switchable
Input connections: L+R XLR female (L+R XLR male through)

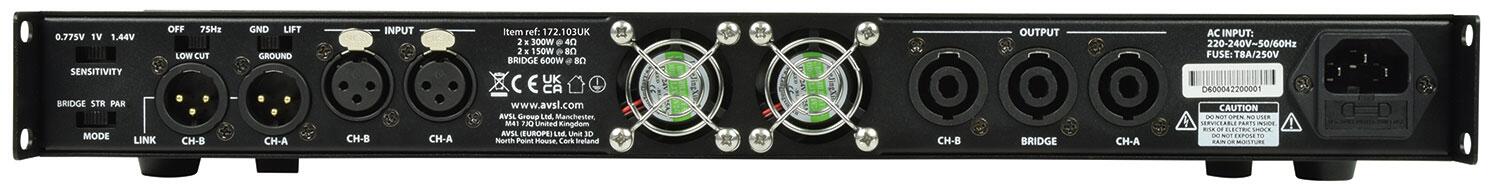

Output connections: L+R SPK connectors (+1 for bridge mode)
Dimensions: 482 x 245 x 44mm
Weight: 3.5kg
