Citronic

D600 Class-D Amplifier 2 x 300Wrms

Citronic D600 Class-D Amplifier front
Hover over the image to zoom


Citronic

D600 Class-D Amplifier 2 x 300Wrms

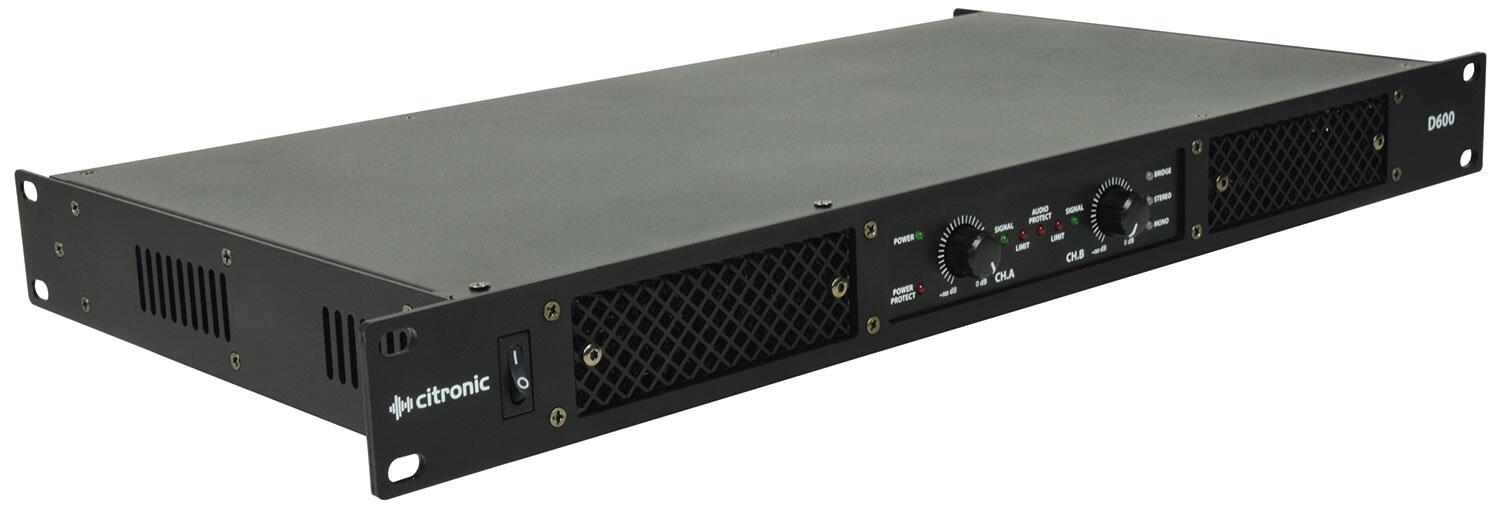

The D600 is a stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different configurations to handle even the most demanding of sound reinforcement duties.

  • Features
    • Compact and lightweight 1U rack format
    • Cool and efficient operation even at high output
    • Switchable parallel and bridge modes
  • Specifications

    Bridge power @ 8 Ohms: 1 x 600W

    Power rms @ 8 Ohms: 2 x 150W

    Power rms @ 4 Ohms: 2 x 300W

    Power supply: 220-240Vac, 50/60Hz (IEC)

    Modes: Stereo, Parallel (mono), Bridge (mono)

    Input sensitivity: 0.775V - 1.0V - 1.44V switchable

    Low-cut filter: 75Hz switchable

    Input connections: L+R XLR female (L+R XLR male through)

    Output connections: L+R SPK connectors (+1 for bridge mode)

    Dimensions: 482 x 245 x 44mm

    Weight: 3.77kg

SKU172.106UK
